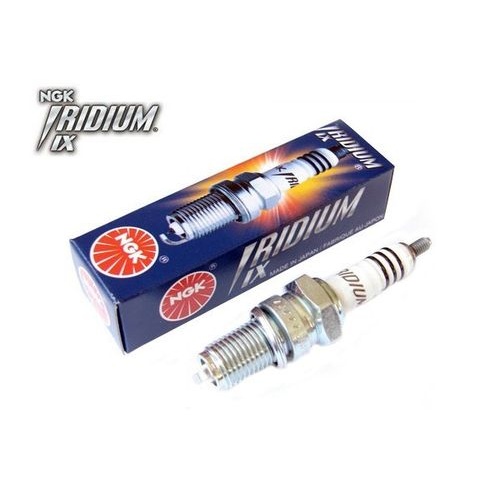

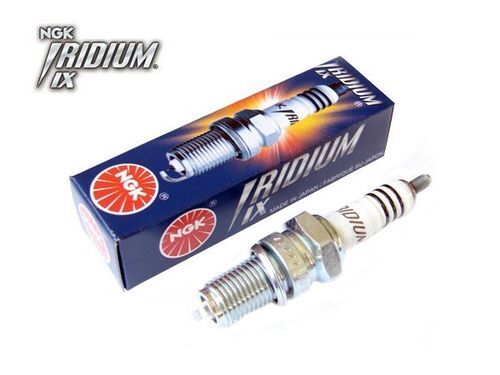

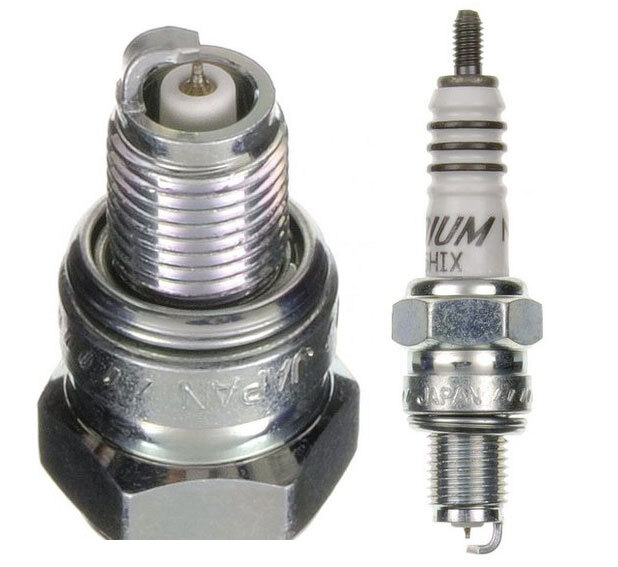

NGK IX Iridium Series plugs were designed specifically for the performance enthusiast.

  • Fine wire center electrode ensures high durability and a consistently stable spark
  • Iridium alloy has an extremely high melting point, perfect for today's high-tech, high performance engines
  • Trivalent metal plating provides superior anti-corrosion and anti-seizing properties
  • Corrugated ribs prevent flashover
  • Pure alumina silicate ceramic insulator, provides superior strength and better heat transfer
  • Copper core aids in heat removal
  • Triple seals prevent leakage

SPECS:

Shell

  • Thread Size: 10mm
  • Thread Pitch: 1.0mm
  • Seat Type: Gasket
  • Resistor Value: 5K Ohm
  • Reach: 12.7mm (1/2")
  • Hex Size: 5/8" (16mm)
  • Terminal Type: Threaded Stud
  • Overall Height: ISO
  • Gap: .028" (0.7mm)

Center Electrode

  • Material: Iridium
  • Type: Fine Wire
  • Size: 0.6mm
  • Projection: Non-Projected

Ground Electrode

  • Material: Nickel
  • Type: Standard
  • Shape: Taper Cut
  • Quantity: 1

Specifications

  • Warranty: 1 Year
  • Torque Specs: Cast Iron: 7.2-10.8 lb. ft. Aluminum: 7.2-8.7 lb. ft.
  • Brand: NGK
  • Heat Range: 8
  • Longevity: 50k Miles
  • Resistor: Yes

(NGK-7669)
